How to get started

The 3DS SDK is distributed using JFrog. You will need to provide TabaPay with an email address to create this account.

This guide will walk you through using JFrog to get your hands on the 3DS SDK. As well as an overview of how to integrate and use the SDK. There are a total of 13 steps in this guide:

How to get the SDK

1. Get a JFrog account from TabaPay and reset your password
2. Login to your account
3. In the top-right of the JFrog Platform, select the Welcome dropdown and click “Edit Profile”
4. Enter your password and click “Unlock”
5. Locate Authentication Settings and click “Generate API Key”

How to use the 3DS SDK (overview)

6. Download and Import the 3DS Mobile SDK
7. Setting Up Your Build Environment
8. Configure Cardinal 3DS Mobile SDK
9. Setup the Initial Call to TabaPay (Initialize)
10. Use the SDK to authenticate the JWT and begin collecting device data.
11. Create a Lookup Request/Response for TabaPay
12. Handle the TabaPay Lookup Response and use the SDK to handle the Challenge UI
13. JWT Validation
14. Create Transaction

For more information on how to integrate/use our 3DS APIs, please go to our 3DS API guide

For more information on what a challenge might look like for a customers, please use the following reference: 3DS Challenge examples

📘

SDK flow is slightly different from the browser flow.

When implementing the SDK flow, you need to keep the following items in mind.

1. The SDK will send device data collected to Cardinal directly.
2. This means that you do not need to send an accountID in the 3D Secure Initialize. Instead you would send the sdkVersion.
3. You will still need to pass accountID in the 3D Secure Lookup, but you will need to send the sdkSessionID as well.

The guide below breaks down the step by step integration, and we will repeat this information in the relevant steps. This is just a quick summary.

How to get the SDK

1. Get a JFrog account from TabaPay and reset your password

Provide TabaPay with an email address for the account. Then you will receive a username and URL link to access the correct JFrog page. You can then reset your password by clicking on "Forgot my password".

📘

Remember to use your Username, not your email for this.

📘

JFrog Access

Go to URL: https://cardinalcommerceprod.jfrog.io/ui/login/

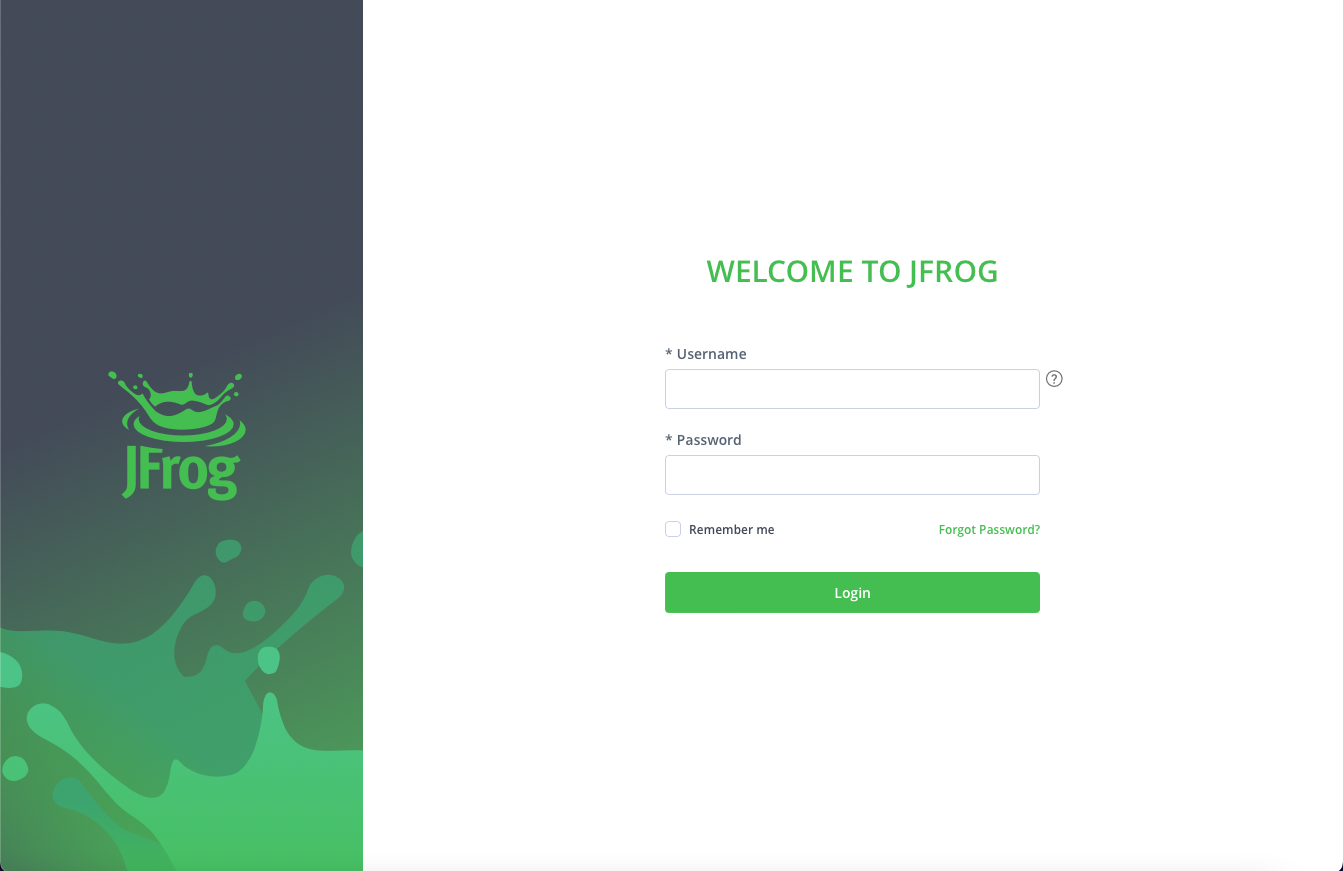

2. Login to your account

Once you reset your password, log into your account using the link TabaPay provided.

3. In the top-right of the JFrog Platform, select the Welcome dropdown and click “Edit Profile”

4. Enter your password and click “Unlock”

5. Locate Authentication Settings and click “Generate API Key”

Scroll down to find the Generate API Key button and click it.

This API Key value will be used to authenticate you during Cardinal Mobile SDK downloads and/or Gradle builds.

How to use the 3DS SDK (overview)

The next steps are how you would go about integrating and using the SDK depending on your operating system.

📘

Make sure you have 3DS on your TabaPay Plan.

3DS 2.0 requires cardholder address as part of the authentication process at the issuer. This means, TabaPay's 3DS API/SDK will fail if the payment instrument does not have a corresponding address. If you're using Account ID as the payment instrument for 3DS, it must have billing address associated with it. So, please ensure you create accounts by providing address always

6. Download and Import the 3DS Mobile SDK

a. For iOS - Download the SDK file using cURL and add it to your XCode project

📘

Please note:

The username and API key you generated in the previoues section (JFrog) is used to download/import the 3DS SDK.

Download CardinalMobile.framework cURL

curl -L -u \<USER_NAME>
        :\<API_KEY> <https://cardinalcommerceprod.jfrog.io/artifactory/ios/><VERSION>-\<BUILD_NUMBER>/cardinalmobilesdk.zip
        -o \<LOCAL_FILE_NAME.EXT>

#Example:
curl -L -u UserName:ApiKey "<https://cardinalcommerceprod.jfrog.io/artifactory/ios/2.2.5-1/cardinalmobilesdk.zip>" -o cardinalmobile2.2.5-1.zip

Download .xcframework Using cURL

curl -L -u \<USER_NAME>
        :\<API_KEY> <https://cardinalcommerceprod.jfrog.io/artifactory/ios/><VERSION>-\<BUILD_NUMBER>/CardinalMobileiOSXC.zip
        -o \<LOCAL_FILE_NAME.EXT>

#Example:
curl -L -u UserName:ApiKey "<https://cardinalcommerceprod.jfrog.io/artifactory/ios/2.2.5-1/CardinalMobileiOSXC.zip>" -o cardinalmobile2.2.5-1.zip

Add to your project

After you have downloaded the file then you can add it to your project through XCode. From your XCode project, go ahead and drag the CardinalMobile.framework or CardinalMobile.xcframework file into the Frameworks group inside of your Xcode Project. If a group doesn't already exist, then create the group. In the Import dialog, tick the box to Copy items into destinations group folder (or Destination: Copy items if needed). The iOS SDK files are now available for linking to your project.

b. For Android - Update the Gradle Build Properties to Integrate Cardinal Mobile SDK

📘

Please note:

The username and API key you generated in the previoues section (JFrog) is used to download/import the 3DS SDK.

To add the SDK to an Android App is relatively simple. Go to Android Studio, and open the app directory (sometimes labeled Module: app). Then open the build.gradle file. Double-check to make sure that you edit the Gradle file that is located in the app directory. Add the following contents to the Gradle file.

repositories {
    ...
	maven {
		url  "<https://cardinalcommerceprod.jfrog.io/artifactory/android>"
		credentials {
			username '' // Artifactory username
            password '' // Artifactory API Key
		}
	}
}
dependencies {
    ...
	//Cardinal Mobile SDK
	implementation 'org.jfrog.cardinalcommerce.gradle:cardinalmobilesdk:X.X.X-X'
}

ReplaceX.X.X-X with the latest Cardinal SDK Version Number.

If your project uses Proguard, add the following lines into proguard-rules.pro file:

-keep class com.cardinalcommerce.dependencies.internal.bouncycastle.**
-keep class com.cardinalcommerce.dependencies.internal.nimbusds.**

7. Setting Up Your Build Environment

For iOS

1. Open Xcode and click on your project in the source list to the left of the main editor area.
2. Select your application under the Targets section and go to the General tab.
3. Expand the Embedded Binaries section then click the small “+” button at the bottom of the list.
4. Add the CardinalMobile.framework or CardinalMobile.xcframework file from the list

For Android

No additional work needed to setup your build environment

8. Configure Cardinal 3DS Mobile SDK

For iOS

Upon successfully completing Integration in Step 1 and Step 2, create a new instance of the cardinal object by session = CardinalSession(). SDK offers multiple configuration options for you (if not specified, everything is set to default). For more details: CardinalConfigurationOptions. Use the code snippet below for completing the configuration.

import CardinalMobile

var session : CardinalSession!

//Setup can be called in viewDidLoad
func setupCardinalSession{
	session = CardinalSession()
	var config = CardinalSessionConfiguration()
	config.deploymentEnvironment = .production
	config.requestTimeout = 8000
	config.challengeTimeout = 5
	config.uiType = .both

	let yourCustomUi = UiCustomization()
	//Set various customizations here. See "iOS UI Customization" documentation for detail.
	config.uiCustomization = yourCustomUi

	let yourDarkModeCustomUi = UiCustomization()
	config.uiCustomization = yourDarkModeCustomUi

	config.renderType = [CardinalSessionRenderTypeOTP,
							CardinalSessionRenderTypeHTML,
							CardinalSessionRenderTypeOOB,
							CardinalSessionRenderTypeSingleSelect,
							CardinalSessionRenderTypeMultiSelect]

	session.configure(config)
}

For Android

Upon successfully completing Integration in Step 1, get the instance of the cardinal object by Cardinal.getInstance(). SDK offers multiple configuration options for you (if not specified, everything is set to default). For more details see the Configurations table. Use the code snippets below for completing the cardinal.configure().

private Cardinal cardinal = Cardinal.getInstance();
@Override
protected void onCreate(Bundle savedInstanceState) {

CardinalConfigurationParameters cardinalConfigurationParameters = new CardinalConfigurationParameters();
        cardinalConfigurationParameters.setEnvironment(CardinalEnvironment.STAGING);
        cardinalConfigurationParameters.setRequestTimeout(8000);
		cardinalConfigurationParameters.setChallengeTimeout(5);

		JSONArray rType = new JSONArray();
        rType.put(CardinalRenderType.OTP);
        rType.put(CardinalRenderType.SINGLE_SELECT);
        rType.put(CardinalRenderType.MULTI_SELECT);
        rType.put(CardinalRenderType.OOB);
        rType.put(CardinalRenderType.HTML);
        cardinalConfigurationParameters.setRenderType(rType);

        cardinalConfigurationParameters.setUiType(CardinalUiType.BOTH);

        UiCustomization yourUICustomizationObject = new UiCustomization();
        cardinalConfigurationParameters.setUICustomization(yourUICustomizationObject);

        cardinal.configure(this,cardinalConfigurationParameters);

}

9. Setup the Initial Call to TabaPay (Initialize)

You will need to call your own backend server in order to initiate a init request since only your backend server can contact the TabaPay API. More information on 3DS API Guide

Initializes a 3D Secure Card Authentication Request. This creates a JWT for 3D Secure Card Authentication.

If you are an ISO, you will need to specify a SubClientID.

📘

SDK flow is slightly different from the browser flow.

When implementing the SDK flow, you need to keep the following items in mind.

1. The SDK will send device data collected to Cardinal directly.
2. This means that you do not need to send an accountID in the 3D Secure Initialize. Instead you would send the sdkVersion.

URL
https://FQDN/v2/clients/ClientID/3ds/init

Merchant must connect with TabaPay’s 3D Secure Initialize

Notes:
For Clients who are an ISO, to specify your ClientID and a SubClientID, use the underscore character ("_") to separate the two values:   <ClientID>_<SubClientID>   where:

• ClientID is your unique 22-character string and
• SubClientID is an assigned 4, 6 or 8-digit value.

This generates your JWT

10. Use the SDK to authenticate the JWT and begin collecting device data.

For iOS

Calling session.setup will begin the process of authenticating your credentials (using the JWT from the previous step) and completing the data collection process. By the time they are ready to checkout, all necessary pre-processing will be completed. Use the code snippet below for completing the session setup.

📘

Important note:

The SDK returns consumerSessionId in the completed callback. This is the value that you would send to the 3D Secure Lookup in the sdkSessionID field.

let jwtString = "INSERT_THE_TABAPAY_INIT_JWT_HERE"

session.setup(jwtString: jwtString, completed: { (consumerSessionId: String) in
    //
    // You may have your Submit button disabled on page load. Once you are setup
    // for CCA, you may then enable it. This will prevent users from submitting
    // their order before CCA is ready.
    //
}) { (validateResponse: CardinalResponse) in
    // Handle failed setup
    // If there was an error with setup, cardinal will call this function with
    // validate response and empty serverJWT
}

For Android

Calling cardinal.init() on an instance of Cardinal will begin the process of authenticating your credentials (using the JWT from the previous step) and completing the data collection process. By the time they are ready to checkout, all necessary pre-processing will be completed. Use the code snippet below for completing the setup.

📘

Important note:

The SDK returns consumerSessionId in the onSetupCompleted callback. This is the value that you would send to the 3D Secure Lookup in the sdkSessionID field.

cardinal = Cardinal.getInstance();
String serverJwt = "INSERT_THE_TABAPAY_INIT_JWT_HERE";
cardinal.init(serverJwt ,
new CardinalInitService() {
    /**
    * You may have your Submit button disabled on page load. Once you are set up
    * for CCA, you may then enable it. This will prevent users from submitting
    * their order before CCA is ready.
    */
    @Override
    public void onSetupCompleted(String consumerSessionId) {

    }
    /**
    * If there was an error with set up, Cardinal will call this function with
    * validate response and empty serverJWT
    * @param validateResponse
    * @param serverJwt will be an empty
    */
    @Override
    public void onValidated(ValidateResponse validateResponse, String serverJwt) {

    }
});

11. Create a Lookup Request/Response for TabaPay

You will need to call your own backend server in order to initiate a lookup request since only your backend server can contact the TabaPay API. For more information on our APIs: 3DS API Guide

📘

SDK flow is slightly different from the browser flow.

When implementing the SDK flow, you need to keep the following items in mind.

1. You will still need to pass accountID in the 3D Secure Lookup, but you will need to send the sdkSessionID as well.
2. In the previous step, the SDK returns consumerSessionId in the completed (iOS) or onSetupCompleted (android) callback. This is the value that you would send to the 3D Secure Lookup in the sdkSessionID field.

The guide below breaks down the step by step integration, and we will repeat this information in the relevant steps. This is just a quick summary.

3D Secure Card Lookup.
If you are an ISO, you will need to specify a SubClientID.

URL
https://FQDN/v2/clients/ClientID/3ds/lookup

Notes:

For Clients who are an ISO, to specify your ClientID and a SubClientID, use the underscore character ("_") to separate the two values: <ClientID>_<SubClientID> where:

• ClientID is your unique 22-character string and
• SubClientID is an assigned 4, 6 or 8-digit value.

Lookup codes

The following documentation has the values you should use for the lookup call:

1. Authentication Indicator
2. Transaction Mode
3. Transaction Type
4. Product Code

Please follow our "How to guide" to complete your backend integration.

Required Field for identifying as an SDK transaction:\ <DeviceChannel>SDK</DeviceChannel>\ <DFReferenceId>ReferenceId</DFReferenceId>\
ReferenceId is consumerSessionId returned on setup completion, if no referenceID is passed in serverJwt. Else you can use that referenceID as DFReferenceId

12. Handle the TabaPay Lookup Response and use the SDK to handle the Challenge UI

Frictionless Response:

After the completion of the lookup request, check the response for the following fields :
3dsVersion = 2.X ( 2.0, 2.1, etc) enrolled = Y status = Y

The status = Y means that the authentication was succesful and NO challenge is necessary.

Example frictionless response:

{
  "SC": 200,
  "EC": "0",
  "3dsVersion": "2.1.0",
  "enrolled": "Y",
  "processorTransactionID": "11111111111111111111",
  "dsTransactionID": "11111111-2222-3333-4444-555555555555",
  "status": "Y",
  "ECI": "05",
  "UCAF": "1111111111111111111111111111"
}

Step up/Challenge response:

After the completion of the lookup request, check the response for the following fields :
3dsVersion = 2.X ( 2.0, 2.1, etc) enrolled = Y challengeURL=[not empty] payload=[not empty]

The existence of the challengeURL and payload elements in the response mean that a Challenge is required for Authentication.

Example challenge response:

{
  "SC": 200,
  "EC": "0",
  "3dsVersion": "2.1.0",
  "enrolled": "Y",
  "processorTransactionID": "11111111111111111111",
  "dsTransactionID": "11111111-2222-3333-4444-555555555555",
  "challengeURL": "https://someplace.somewhere.com/challenge",
  "payload": "A_LONG_PAYLOAD"
}

In this case initiate the challenge flow.

Here are some example challenge flows

After the challenge is performed, the SDK will return control to the application through the stepUpDidValidate or onValidate events. The following are some potential responses from the challenge:
NOACTION - Authentication was not applicable.

SUCCESS - Authentication was completed successfully.

FAILURE - Authentication resulted in a failure.

ERROR - An error was encountered.

📘

For more detailed information about ActionCodes

Please visit our 3DS challenge results page

For iOS

Call [session continueWithTransactionId.. ] to hand control to SDK for performing the challenge between the user and the issuing bank. Use the code snippet below for completing the session's continue.

 [session continueWithTransactionId: @"[processorTransactionID]" payload: @"[PAYLOAD]" didValidateDelegate: self];

In continue for Quick Integration, a class conforming to a protocol CardinalValidationDelegate (and implement a method stepUpDidValidate) should be passed as a parameter. Following is the example of class conforming to CardinalValidationDelegate protocol.

class YourViewController:CardinalValidationDelegate {

    /**
     * This method is triggered when the transaction has been terminated.This is how SDK hands back
     * control to the merchant's application. This method will
     * include data on how the transaction attempt ended and
     * you should have your logic for reviewing the results of
     * the transaction and making decisions regarding next steps.
     * JWT will be empty if validate was not successful
     *
     * @param session
     * @param validateResponse
     * @param serverJWT
     */
    func cardinalSession(cardinalSession session: CardinalSession!, stepUpValidated validateResponse: CardinalResponse!, serverJWT: String!) {

    }

}

If continue is being called in the same class then the following method is called to start StepUpFlow:

 session.continueWith(transactionId: "[processorTransactionID]", payload: "[PAYLOAD]", validationDelegate: self)

stepUpDidValidate is triggered when the transaction has been terminated. This is how the 3DS Mobile SDK hands back control to the merchant's application. This event will include data on how the transaction attempt ended and should be where you review the results of the transaction and make decisions regarding the next steps. The field ActionCode should be used to determine the overall state of the transaction.

🚧

Please note:

validateResponse may return nil in a successful challenge. Please us the serverJWT with the 3D Secure Authenticate API to get the final result.

func cardinalSession(cardinalSession session: CardinalSession!, stepUpValidated validateResponse: CardinalResponse!, serverJWT: String!) {
    switch validateResponse.actionCode {
    case .success:
        // Handle successful transaction, send JWT to backend to verify
        break

    case .noAction:
        // Handle no actionable outcome
        break

    case .failure:
        // Handle failed transaction attempt
        break

    case .error:
        // Handle service level error
        break

	case .cancel:
        // Handle transaction canceled by user
        break

	case .timeout:
        // Handle transaction timedout
        break
    }
}

For Android

Call cardinal.cca_continue to hand control to SDK for performing the challenge between the user and the issuing bank. Use the code snippet below for completing the cardinal.continue().

cardinal.cca_continue is updated to not passing the hardcoded directoryServerID anymore
 cardinal.cca_continue("[processorTransactionID ]", "[PAYLOAD]", this, new CardinalValidateReceiver() {
});

/**
  * Cca continue.
  *
  * @param transactionId     the transaction id
  * @param payload           the payload
  * @param currentActivity   the current activity
  * @throws InvalidInputException        the invalid input exception
  * @throws JSONException                the json exception
  * @throws UnsupportedEncodingException the unsupported encoding exception
  */
 try {
     cardinal.cca_continue("[processorTransactionID ]", "[PAYLOAD]", this, new CardinalValidateReceiver() {
            /**
             * This method is triggered when the transaction has been terminated. This is how SDK hands back
             * control to the merchant's application. This method will
             * include data on how the transaction attempt ended and
             * you should have your logic for reviewing the results of
             * the transaction and making decisions regarding next steps.
             * JWT will be empty if validate was not successful.
             *
             * @param validateResponse
             * @param serverJWT
             */
            @Override
            public void onValidated(Context currentContext, ValidateResponse validateResponse, String serverJWT) {

            }
        });
  }
 catch (Exception e) {
    // Handle exception
  }

onValidated() is triggered when the transaction has been terminated. This is how the 3DS Mobile SDK hands back control to the merchant's application. This event will include data on how the transaction attempt ended and should be where you review the results of the transaction and make decisions regarding the next steps. The field ActionCode should be used to determine the overall state of the transaction.

@Override
   public void onValidated(Context currentContext, ValidateResponse validateResponse, String serverJWT) {

       switch (validateResponse.getActionCode()){

           case SUCCESS:
               // Handle successful transaction, send JWT to backend to verify
               break;
           case NOACTION:
               // Handle no actionable outcome
               break;
           case FAILURE:
               // Handle failed transaction attempt
               break;
 		   case CANCEL:
               // Handle cancel transaction
               break;
           case ERROR:
               // Handle service level error
               break;
		   case TIMEOUT:
               // Handle timeout
               break;
      }
}

13. JWT Validation

Once the challenge is completed you need to validate the resulting serverJWT by sending to the TabaPay Authenticate API.

How do you retrieve the JWT?

iOS

You receive the JWT in the cardinalSession function from the previous step. When defining what to do during the SUCCESS case, you can pass this serverJWT object back to your server for validation.

func cardinalSession(cardinalSession session: CardinalSession!,
                     stepUpValidated validateResponse: CardinalResponse!,
                     serverJWT: String!) {
		//...
  		//...
  		//...
    	}
}

Android

You receive the JWT in the onValidated function from the previous step. When defining what to do during the SUCCESS case, you can pass this serverJWT object back to your server for validation.

@Override
   public void onValidated(Context currentContext,
                           ValidateResponse validateResponse,
                           String serverJWT) {
      //...
      //...
      //...
      }
}

How do you validate the JWT?

📘

The Authenticate API is called after the challenge is performed.

3D Secure Card Challenge Authentication.
If you are an ISO, you will need to specify a SubClientID.

URL
https://FQDN/v2/clients/ClientID/3ds/authenticate

Notes:
For Clients who are an ISO, to specify your ClientID and a SubClientID, use the underscore character ( *) to separate the two values:<ClientID>*<SubClientID> where:

• ClientID is your unique 22-character string and
• SubClientID is an assigned 4, 6 or 8-digit value.

14. Create Transaction

👍

Almost done! Don't forget to create a transaction.

After the authenticate API we will provide you with the UCAF, XID, ECI which you can use in the pullOptions of the CreateTransaction.

Electronic Commerce Indicator (ECI). The ECI value is part of the 2 data elements that indicate the transaction was processed electronically. This should be passed on the authorization transaction to the Gateway/Processor.

Possible Values:

1. 02 or 05 - Fully Authenticated Transaction
2. 01 or 06 - Attempted Authentication Transaction
3. 00 or 07 - Non 3-D Secure Transaction

Values per Network:

1. Mastercard - 02, 01, 00
2. VISA - 05, 06, 07
3. AMEX - 05, 06, 07
4. JCB - 05, 06, 07
5. DINERS CLUB - 05, 06, 07
6. Cartes Bancaires (CB) Visa - 05, 06, 07
7. Cartes Bancaires (CB) Mastercard - 02, 01, 00
8. ELO: 05, 06, 07
9. Union Pay International: 05, 06, 07
10. eftpos (Visa or MC) - 05, 06, 07

For more information: https://developers.tabapay.com/reference/3ds-faq

Create Transaction:

3DS APIs only provide a way for you and the issuer to verify a customer's identity. In order to create a transaction you still have to call the create transaction API. The create transaction API has a body param for pullOptions. Within this object, you should find a 3DSecure object. Please look at the 3DSecure object and it's internal fields to know what information you will need to provide the createTransaction API.

Example Flow:
